Item: MP4500XP
Currently offering Free Shipping within the lower 48 States
Current Lead time is approximately 3 weeks.
Country of Origin USA
Capacity 45 tons
Warranty 3 years
Attachments Included
-1.5HP Baldor Motor, 2 Stage (HI-LO) gear pump
-Dual pedal foot switch with safety cover (8ft length)
-8 inch 3 in 1 Combination Shear
-12" Press Brake with 3/16" brake die set
-Brake Back Stop
-Brake Guide Table
-Limit Switch Kit (Stroke Control with micro adjust)
-Punch Station Guide Table
-Shear Guide Table
-Slug Catcher
-Wheel Kit
-Shear back stop
-8 Piece Punch and Die Set (9/32", 11/32", 13/32", 15/32", 17/32", 21/32", 25/32", 29/32")
Shear Capacity - Flat bar
Up to 1/2" Mild Steel
Shear Capacity - Angle Iron 1/4" x 4" x 4"
Shear Capacity - Rod 3/4"
Shear Capacity - Square 5/8"
Forming Capacity Up to 1/2" Mild Steel
Forming Tonnage Capacity 28 tons
Punch Capacity 50 tons
Power 110/120V Single Phase
Motor/Pump 1.5HP Baldor Motor, 2 stage (HI-LO) Gear Pump
Strokes Per Minute 26
Hydraulic Pressure 2900PSI
Gallons Per Minute LO-4GPM / HI-1.5 GPM @450PSI
Throat Depth 3¾"
Operating Weight 800 lbs
Machine Dimensions 24" x 36.5" x 59"
OSHA/ASNI B11-8 Approved

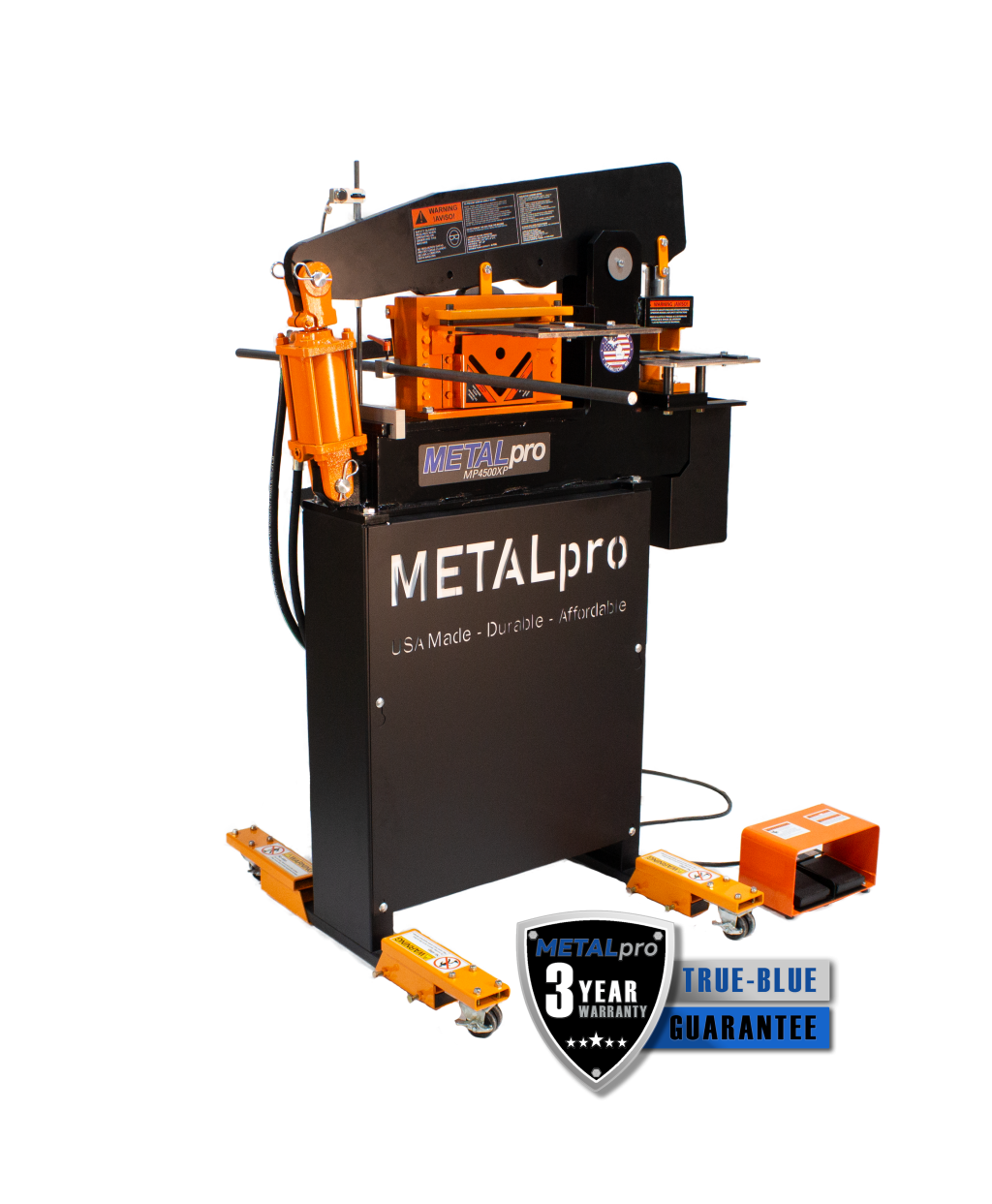

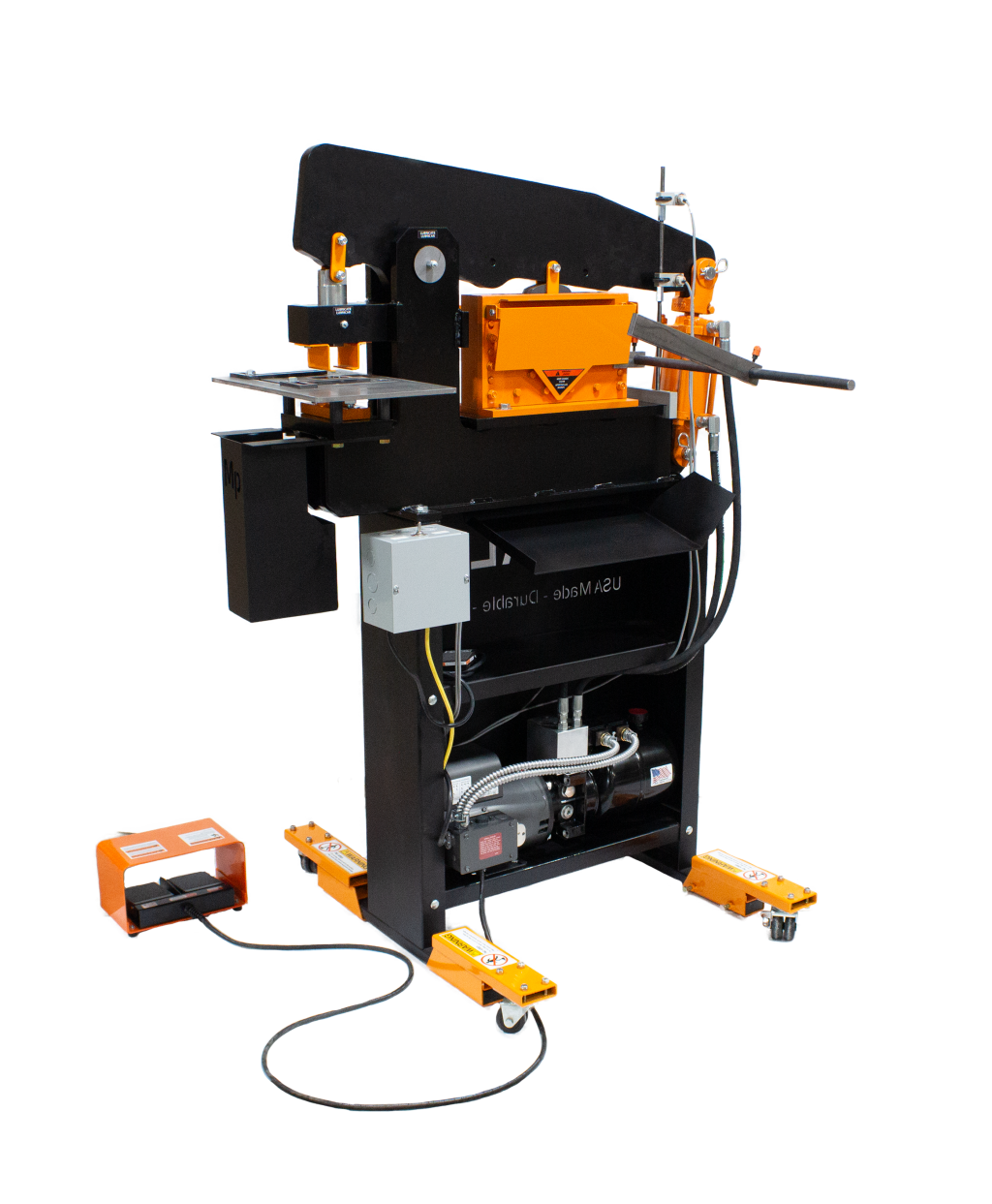

The MP4500XP (Xtreme Production) is a 45-ton ironworker that comes fully loaded with power and attachments, built to handle production and high out-put speeds. It is powered by a foot switch controlled 1.5HP Baldor motor, spinning an American engineered 2 stage, high performance gear pump. The motor/pump runs on 110V single phase power producing 24 strokes per minute and allows for users to punch, shear or brake up to 1/2″ material. This ironworker comes equipped with 13 attachments (listed below) giving users all the tools needed to hit the ground running. The MP4500XP is loaded with capabilities, and it’s matte black color with orange accents are, sleek, bold and just plain badass.
Quality is not just a promise at METALpro, its part of our foundation. It is why we make our machines in Hamilton, Michigan and source 100 percent of our components in the USA. We don’t just talk about durability, we mean it, and that’s why we offer an industry leading 3 year warranty.
ATTACHMENTS INCLUDED:
1.5HP Baldor Motor with 2 Stage (HI-LO) gear pump 2900PSI
Dual pedal foot switch with safety cover (8ft length)
8 inch 3 in 1 Combination Shear (Flat Bar, Angle Iron, Round Rod, Square Bar)
12″ Press Brake with 3/16″ brake die set
Brake Back Stop
Brake Guide Table
Limit Switch Kit (Stroke Control with micro adjust)
Punch Station Guide Table
Shear Guide Table
Slug Catcher
Wheel Kit
Shear back stop
8 Piece Punch and Die Set (9/32″, 11/32″, 13/32″, 15/32″, 17/32″, 21/32″, 25/32″, 29/32″)
*ALL METALpro MACHINES ARE RATED FOR MILD STEEL
Shipping Charges are added to the shopping cart when checking out. Feel free to contact us via email or phone for any questions. 541-499-0466
